SHIMANO HOLLOWTECH II CRANK RECALL

Shimano Recall: 11-Speed Bonded HOLLOWTECH II Road Cranksets Inspection and Replacement.


Please watch this video to determine if your crank is affected by the the voluntary recall.  If indeed you believe you have an affected crank, bring your bike into the shop for your FREE inspection!

For a limited time we are offering $20 off our best tune up. Just bring your qualified crank in for inspection and we will take $20 off our Deluxe Performance Package.

Please follow the following procedure to determine if your crankset indicates a need professional inspection.



Step 1 - Determine Whether this notice applies to your crankset

Step 1A - Identify the model number of your crankset

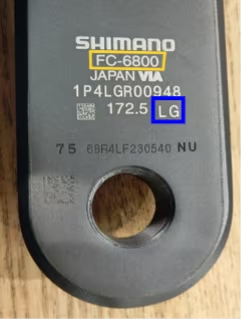

The affected model numbers are DURA-ACE and ULTEGRA branded cranksets with the following model numbers: ULTEGRA FC-6800, FC-R8000 and DURA-ACE FC-9000, FC-R9100 and FC-R9100-P. The model numbers are stamped on the inside of the crank arm near the bottom of the arm (see yellow square in the] image below)

Does the model number on your crank arm match the model numbers above?

NO: The crank is not affected, and no further action is needed.

YES: Proceed to STEP 1B.


DURA-ACE FC-9000
DURA-ACE FC-R9100
DURA-ACE FC-R9100P

ULTEGRA FC-6800

ULTEGRA FC-R8000


Step 1B – Identify the production code stamped on your crank arm (blue box on the image below)

 A production code is stamped on the inside of the crank arm near the bottom of the arm. The affected models are pre-July 2019 production and have the following two-letter production code on backside of the crank arm where the pedals are attached: KF, KG, KH, KI, KJ, KK, KL, LA, LB, LC, LD, LE, LF, LG, LH, LI, LJ, LK, LL, MA, MB, MC, MD, ME, MF, MG, MH, MI, MJ, MK, ML, NA, NB, NC, ND, NE, NF, NG, NH, NI, NJ, NK, NL, OA, OB, OC, OD, OE, OF, OG, OH, OI, OJ, OK, OL, PA, PB, PC, PD, PE, PF, PG, PH, PI, PJ, PK, PL, QA, QB, QC, QD, QE, QF, QG, QH, QI, QJ, QK, QL, RA, RB, RC, RD, RE, and RF.




Please proceed to Step 2 if your crank has this code. If your crankset does not have one of these codes, please proceed to step 3.

• If you have noticed any changes in the feeling of the crank when you pedal or hear noise or creaking, please proceed to Step 2.

• Consumers who believe they have an applicable product or are unsure how to check the manufacturing code are asked to contact an authorized Shimano retailer to schedule a free crankset inspection. Please see below for instructions on how to figure that out. You may also call us at (844) 776-0315 for assistance.

• Consumers with cranksets that do not fall within the specified date codes do not need to take further action regarding this safety recall or inspection.

• Please proceed to Step 3.

Step 2 - Bring your bicycle to the Peddler's Shop for inspection

Our staff have been trained to inspect and determine if your crankset needs replacement.

  • We will inspect the crankset for signs of bonding separation or delamination.
  • We will submit the required information to Shimano so that we can document the inspection, results, and replacement cranks if needed.
  • Shimano is required to maintain this information for CPSC reporting and to ensure the process is completed.
  • Consumers whose cranksets show signs of bonding separation or delamination during the inspection will be provided a free replacement crankset* from Shimano that the retailer will professionally install.

Step 3 – Ride safely and continue to inspect your bicycle/equipment

If your crankset passes the inspection and has no signs of delamination, we appreciate your patience and diligence in having the safety inspection done. You may continue using your crankset as normal.

  • If your crank requires replacement, we appreciate your patience to complete this process.
  • We encourage all riders to maintain their bicycle and riding equipment diligently.
  • Have your bike tuned up and inspected regularly (ask your retailer for recommendations based on your riding habits).
  • Pay attention to changes in the sound and feel of how your bike is riding. Changes could indicate wear out, breakage, or need for adjustment to some part of your bike.

•If a replacement crankset is temporarily unavailable, Shimano will maintain a registry of retailer requests and will notify retailers when the replacement is ready.
